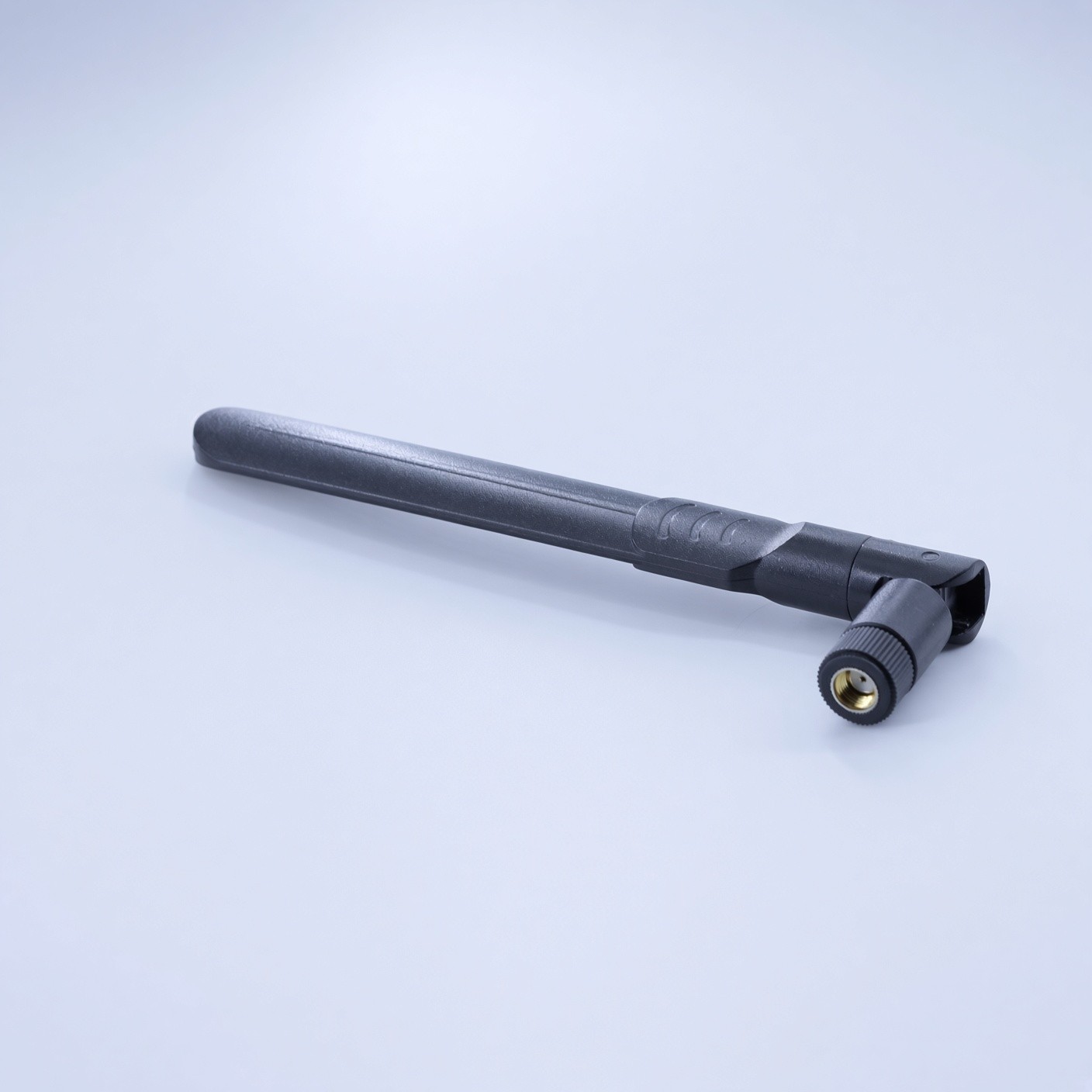

YKRF-42841FG ST0428-41-001-A Amphenol

INGKE YKRF-42841FG 100% cross ST0428-41-001-A Amphenol

Part No.: ST0428-41-001-A Amphenol

INGKE Part No.: YKRF-42841FG INGKE

Made in China: INGKE Technology

Description: ST0428-41-001-A Amphenol IP 66 RF ANTENNA EXTERNAL WIDE B

MOQ: 1PCS

Lead Time: 1-2 Weeks

Category: RF Antennas

Number of Bands: 5

RF Family/Standard: Cellular

Frequency Group: Wide Band

Frequency (Center/Band): 829MHz, 1.94GHz, 2.495GHz, 4.15GHz, 5.487GHz

Frequency Range: 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.825GHz

Antenna Type: Whip, Tilt

Return Loss: -6dB, -5.1dB, -4.4dB

Gain: 3.1dBi, 4dBi, 2.3dBi, 4.4dBi, 4.7dBi

Power - Max: 1 W

Termination: SMA

Height (Max): 9.055" (230.00mm)

Mounting Type: Connector Mount

Application: OEM Sharkfin Automotive, Truck Mounted Systems

Operating Temperature: -40°C ~ 85°C

RoHS Compliant and REACH

100% compatible, 100% test,  warranty for 60 months

Factory with UL, supplier of Marvell & Honeywell

Chinese UL factory for producing ST0428-41-001-A Amphenol RF Antennas
