  • YKRF-GPSF.36.7.A.30 Taoglas GPSF.36.7.A.30 Antennas

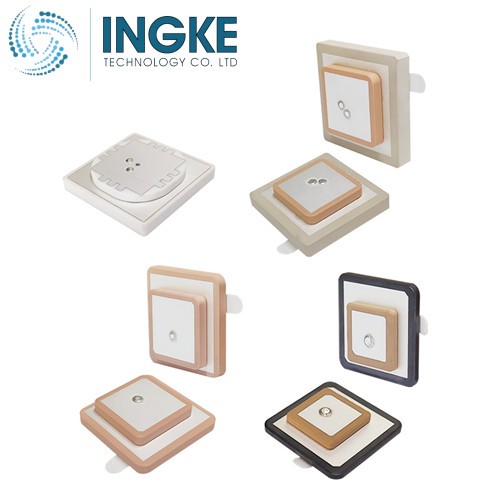

YKRF-GPSF.36.7.A.30 Taoglas GPSF.36.7.A.30 Antennas

  • Product Item : YKRF-GPSF.36.7.A.30 INGKE
  • Category: Antenna
  • GPS L1/L2 Single Feed Stacked Patch Passive Antenna
  • Replace GPSF.36.7.A.30 Taoglas
Product Description:
INGKE YKRF-GPSF.36.7.A.30 100% cross Taoglas GPSF.36.7.A.30 Antennas

Part No.: GPSF.36.7.A.30 Taoglas
INGKE Part No.: YKRF-GPSF.36.7.A.30
Made in China: INGKE Technology
Description: GPSF.36.7.A.30 Taoglas GPS L1/L2 Single Feed Stacked Patch Passive Antenna
Lead Time: 1-2 Weeks

Product Category: Antennas
Product Type: GNSS Antennas - GPS, GLONASS, Galileo, Beidou
Product: PCB Antennas
Minimum Frequency: 1.227 GHz
Maximum Frequency: 1.575 GHz
Mechanical Style: Patch
Termination Style: Pin
Style: Stacked
Gain: 5.44 dBi, 3.1 dBi
Impedance: 50 Ohms
Mounting Style: Adhesive Mount
Center Frequency: 1.2276 GHz, 1.57542 GHz
Length: 36 mm
Width: 36 mm
Height: 4 mm
Ground Plane Size: 70 mm x 70 mm
Polarization: RHCP
Application:  UAVs, Drones, Transportation, Autonmous Vehicles, Marine, Agriculture, Navigation
Operating Temperature: -40°C ~ 85°C
RoHS Compliant and REACH

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
