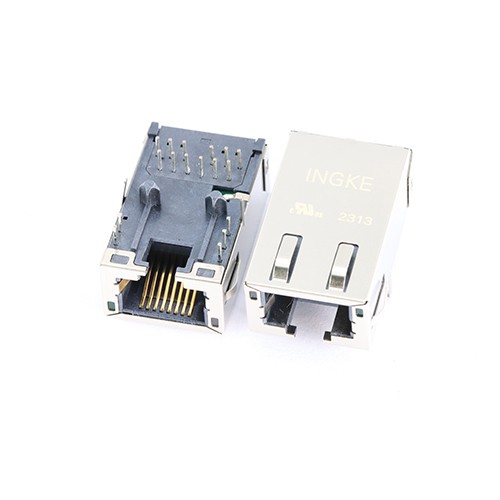

YKSD-74998NL 7499811120 Würth Elektronik

INGKE YKSD-74998NL 100% compatible with 7499811120 Würth Elektronik

Part No.: 7499811120 Würth Elektronik
INGKE Part No.: YKSD-74998NL
Made in China: INGKE Technology
Description: 7499811120 Würth Elektronik 1 Port 10G Base-T, AutoMDIX
MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type: RJ45
Number of Ports: 1
Number of Rows: 1
Applications: 10G Base-T, AutoMDIX
Mounting Type: Panel Mount, Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 0.469" (11.90mm)
LED Color: Yellow - Green
Number of Cores per Jack: 8
Shielding: Shielded, EMI Finger
Tab Direction: Down
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: -40°C ~ 85°C
Shield Material: Brass
Housing Material: Liquid Crystal Polymer (LCP)
Categories:Connectors, Interconnects, Modular Connectors, Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
