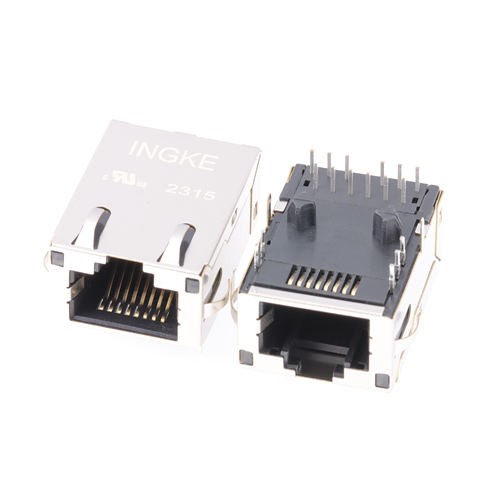

YKTU-1420NL 7499611420 WE

Product Description:
INGKE YKTU-1420NL 100% compatible with 7499611420 WE

Part No.:  7499611420 WE
INGKE Part No.: YKTU-1420NL
Made in China: INGKE Technology
Description:  7499611420 WE 10GBASE-T Tab Up RJ45 Transformer
Lead Time: 1-2 Weeks

Speed: 10GBASE-T
Latch: Tab Up
Number of Ports:1 port
LED:  Yellow/Green-Green
Shielding: Shielded, EMI Finger
PoE Rating: No POE
PCB Mount: Through Hole
Operating Temperature: -40°C ~ 85°C
Mating Cycle: 750
Shielding Plating: 50µ" Nickel
Contact Material: Phosphor Bronze
Contact Plating: 50µ" Gold
Plastic Housing Material: Thermoplastic LCP black
Plastic Housing Flammability: Rating UL94 V-0
Packaging: Tray
Categories: Connector, Interconnect, Ethernet Connectors, Jack With Magnetic
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
Chinese UL factory for producing 7499611420 WE RJ45 Transformer
