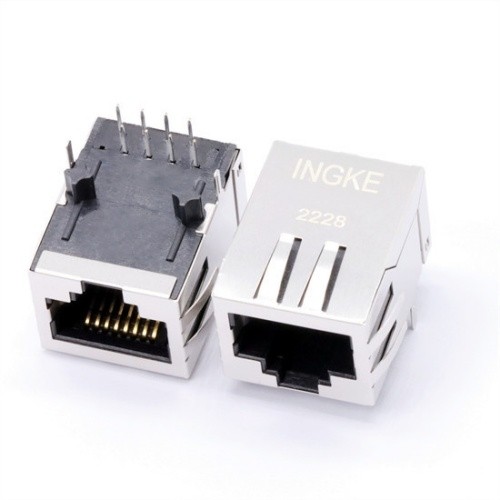

INGKE YKGD-85503501NL 85503-5001 Molex

INGKE YKGD-85503501NL 100% cross 85503-5001 Molex

Part No.: 85503-5001 Molex

INGKE Part No.: YKGD-85503501NL

Made in China: INGKE Technology

Description: 85503-5001 Molex RA 8/8 CATE5E RJ45 LOW PROFILE

MOQ: 1PCS
Lead Time: 1-2 Weeks

Gender: Jack (Female)
USOC Codes: RJ45
Configuration: 1x1
Number of Positions / Contacts per Port: 8P8C
Shielding: Unshielded
Performance Category: Cat 5e
Mounting Style: Through Hole
Mounting Angle: Right Angle
Termination Style: Solder
Current Rating: 1.5 A
Voltage Rating: 125 VDC
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Color: Black
Tab Direction: Tab Down
Application: 10/100/1000 Base-T
Contact Material: Tin
Contact Plating: Gold
Country of Assembly: Not Available
Country of Diffusion: Not Available
Country of Origin: IE
Flammability Rating: UL 94 V-0
Number of Ports: 1 Port
Number of Positions: 8 Position
Pitch: 1.02 mm
Product Type: Modular Connectors / Ethernet Connectors

Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
