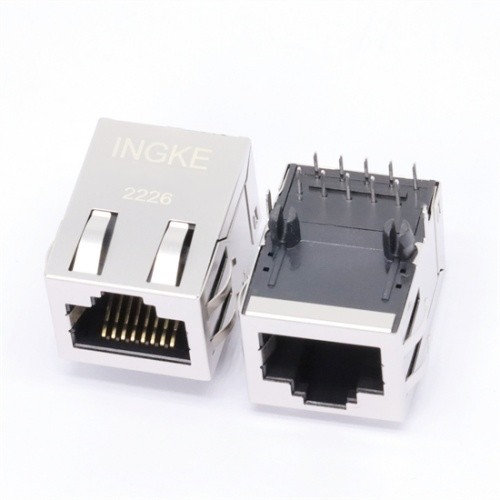

INGKE YKGU-48025091NL 48025-0091 Molex

INGKE YKGU-48025091NL 100% cross 48025-0091 Molex

Part No.: 48025-0091 Molex

INGKE Part No.: YKGU-48025091NL

Made in China: INGKE Technology

Description: 48025-0091 Molex 8/8 MODJCK RA TH W/MAG & LED

MOQ: 1PCS
Lead Time: 1-2 Weeks

Gender: Jack (Female)
USOC Codes: RJ45
Configuration: 1x1
Number of Positions / Contacts per Port: 8P8C
Shielding: Shielded, EMI Fingers
Performance Category: Cat 5, Cat 5e
Mounting Style: Through Hole
Mounting Angle: Right Angle
Termination Style: Solder
Current Rating: 1.5 A
Voltage Rating: 150 VAC
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 70 C
Color: Black
LED L / R Color: Yellow / Green
Tab Direction: Tab Up
Application: 10/100/1000 Base-T
Contact Material: Tin
Contact Plating: Gold
Country of Assembly: Not Available
Country of Diffusion: Not Available
Country of Origin: CN
Flammability Rating: UL 94 V-0
Number of Ports: 1 Port
Number of Positions: 8 Position
Pitch: 1.02 mm
Product Type: Modular Connectors / Ethernet Connectors

Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
