INGKE YKJD-5557786NL 5557786-1 TE

INGKE YKJD-5557786NL 100% cross 5557786-1 TE

Part No.: 5557786-1 TE

INGKE Part No.: YKJD-5557786NL

Made in China: INGKE Technology

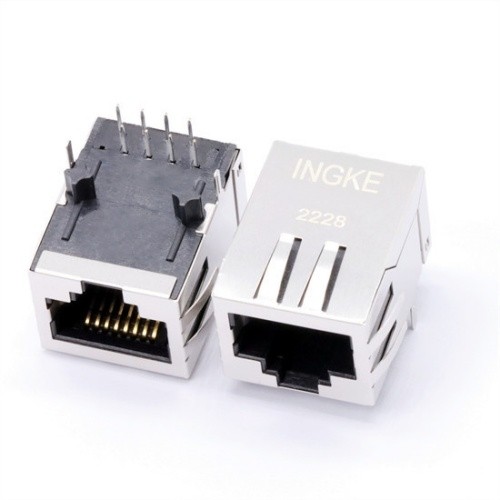

Description: 5557786-1 TE 1X1 Port RJ45 Connector

MOQ: 1PCS
Lead Time: 1-2 Weeks

Gender: Jack (Female)
USOC Codes: RJ45
Configuration: 1x1
Number of Positions / Contacts per Port: 8P8C
Shielding: Shielded
Performance Category: Cat 3
Mounting Style: Through Hole
Mounting Angle: Right Angle
Termination Style: Solder
Current Rating: 200 mA, 1.5 A
Voltage Rating: 150 V
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Color: Black
Tab Direction: Tab Down
Series: Single Port Modular Jack
Application: 10 Base-T
Brand: TE Connectivity / Alcoswitch
Contact Material: Phosphor Bronze
Contact Plating: Gold
Country of Assembly: Not Available
Country of Diffusion: Not Available
Flammability Rating: UL 94 V-0
Number of Ports: 1 Port
Number of Positions: 8 Position
Product Type: Modular Connectors / Ethernet Connectors
Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
