INGKE YKJV-42878103NL 42878-1003 Molex

INGKE YKJV-42878103NL 100% cross 42878-1003 Molex

Part No.: 42878-1003 Molex

INGKE Part No.: YKJV-42878103NL

Made in China: INGKE Technology

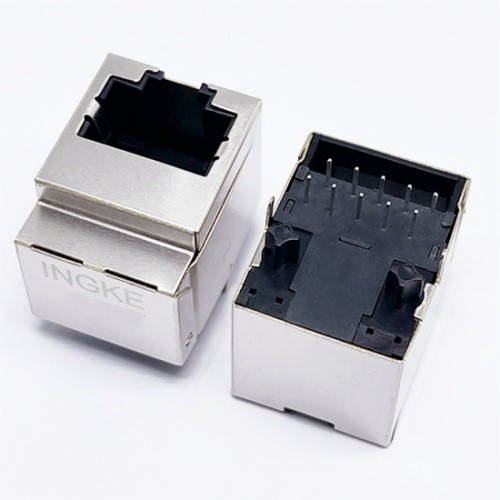

Description: 42878-1003 Molex 1X1 Port RJ45 Connector

MOQ: 1PCS
Lead Time: 1-2 Weeks

Gender: Jack (Female)
USOC Codes: RJ45
Configuration: 1x1
Number of Positions / Contacts per Port: 8P8C
Shielding: Unshielded
Performance Category: Cat 3
Mounting Style: Through Hole
Mounting Angle: Vertical
Termination Style: Solder
Current Rating: 1.5 A
Voltage Rating: 150 VAC
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Color: Black
Tab Direction: Top Entry
Series: 42878
Packaging: Tray
Application: 10 Base-T
Brand: Molex
Contact Material: Tin
Contact Plating: Gold
Country of Assembly: Not Available
Country of Diffusion: Not Available
Flammability Rating: UL 94 V-0
Number of Contacts: 10 Contact
Number of Ports: 1 Port
Number of Positions: 8 Position
Pitch: 1.02 mm
Product Type: Modular Connectors / Ethernet Connectors
Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
