INGKE YKJU-44001NL JXD4-4001NL Pulse Electronics

INGKE YKJU-44001NL 100% cross JXD4-4001NL Pulse Electronics

Part No.: JXD4-4001NL Pulse Electronics

INGKE Part No.: YKJU-44001NL

Made in China: INGKE Technology

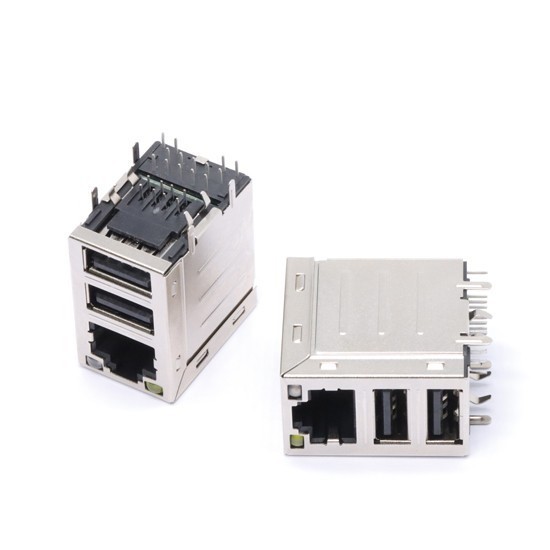

Description: JXD4-4001NL RJ45/Dual 2xUSB 2.0 100P 1500VRMS

MOQ: 1PCS
Lead Time: 1-2 Weeks

Part Status:Active
Connector Type:RJ45 with USB A, Dual
Number of Ports:1
Number of Rows:1
Applications:10/100 Base-T, AutoMDIX, Power over Ethernet+ (PoE+)
Mounting Type:Through Hole
Orientation:90° Angle (Right)
Termination:Solder
Height Above Board:1.215" (30.87mm)
LED Color:Yellow - Green
Number of Cores per Jack:4
Shielding:Unshielded
Features:Board Lock
Tab Direction:Up
Contact Material:Phosphor Bronze
Contact Finish:Gold
Operating Temperature:0°C ~ 70°C
Contact Finish Thickness:15.0µin (0.38µm)
Housing Material:Thermoplastic
Modular Connectors / Ethernet Connectors

Lead Free, RoHS Compliant
INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
