INGKE YKTD-94059NL TMJM9405A93NL Taoglas

INGKE YKTD-94059NL 100% cross TMJM9405A93NL Taoglas

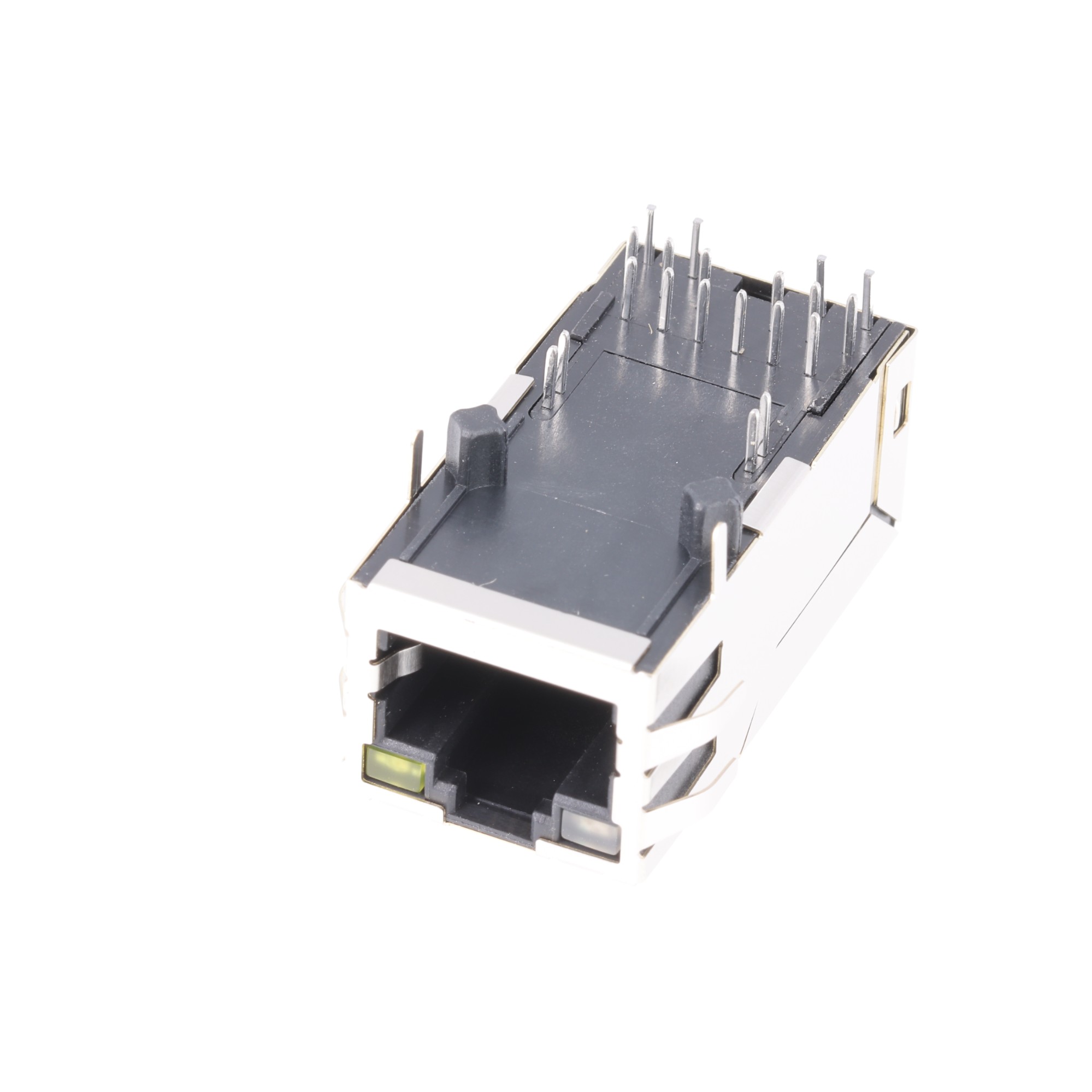

Part No.: TMJM9405A93NL Taoglas

INGKE Part No.: YKTD-94059NL

Made in China: INGKE Technology

Description: TMJM9405A93NL Taoglas 1 Port RJ45 Through Hole 10G Base-T, AutoMDIX

MOQ: 1PCS

Lead Time: 1-2 Weeks

Connector Type:RJ45
Tab Direction:Up

Number of Ports:1
Number of Rows:1
Applications:10G Base-T, AutoMDIX
LED Color:Green, Yellow - Green
Shielding:Shielded, EMI Finger
Features:Board Guide
Mounting Type:Through Hole
Orientation:90° Angle (Right)
Termination:Solder

Height Above Board:0.445" (11.30mm)

Number of Cores per Jack:8
Operating Temperature:-40°C ~ 85°C
Contact Material: Phosphor Bronze
Contact Finish:Gold

Contact Finish Thickness:6.00µin (0.152µm)

Housing Material:Liquid Crystal Polymer (LCP)

Shield Material:Brass

Lead Free, RoHS Compliant

INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months

Factory with UL, supplier of Marvell & Honeywell
