M-Series vs. Military-Spec: A Detailed Parameter Comparison
Empowering Connectivity in Extreme Environments: INGKE TECHNOLOGY Circular Connector Solutions
In the pursuit of industrial excellence, the stability of a connector often defines the boundaries of the entire system. INGKE TECHNOLOGY specializes in high-reliability interconnect fields, providing global customers with professional circular connector solutions that perform exceptionally under the most rigorous conditions.

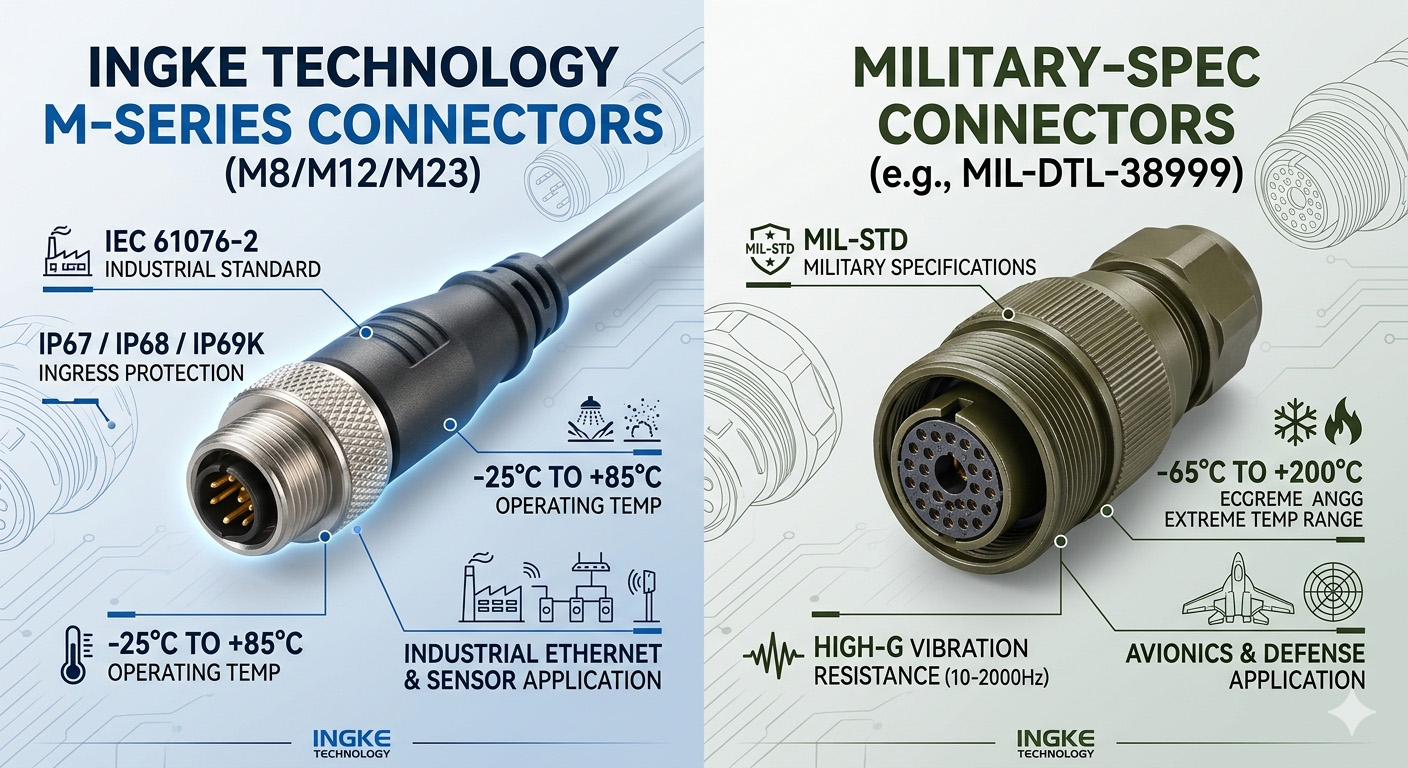

M-Series vs. Military-Spec: A Detailed Parameter Comparison
While both series prioritize stability, their design philosophies and physical tolerances cater to different operational demands. Below is a professional breakdown of INGKE’s two flagship lines.
Feature
M-Series (M8 / M12 / M23)
Military-Spec (e.g., MIL-DTL-38999)
Standard
IEC 61076-2 Industrial Standard
MIL-STD Military Specifications
Locking Mechanism
Threaded / Push-Pull / Snap-in
Triple-start Thread / Bayonet / Breech
Housing Material
Nickel-plated Brass, Stainless Steel
Aluminum Alloy, Stainless Steel, Composite
Ingress Protection
IP67 / IP68 / IP69K
IP68 (Hermetic/Waterproof options)
Operating Temp
-25°C to +85°C (Extended to 125°C)
-65°C to +200°C
Vibration Resistance
10-500Hz (Standard Industrial)
10-2000Hz (Random/Sine High-G)
Shielding (EMI/RFI)
Optional 360° Shielding Ring
Integrated High-Performance Shielding
Mating Cycles
> 500 Cycles
500 - 1500 Cycles (Finish dependent)
Primary Markets
PLC, Sensors, Industrial Ethernet
Avionics, Radar, Armored Vehicles, Marine
Core Technical Analysis
1. Locking & Mechanical Integrity
M-Series: INGKE’s M-Series is renowned for its compactness. M12 is the industry standard for automation, utilizing fine threads. It is ideal for space-constrained environments like sensor heads or compact control boxes.
Mil-Spec: Designed for rapid engagement. Features like triple-start threads allow full mating with just one 360° turn. These connectors often include tactile or visual indicators to ensure a secure lock in high-stress combat or field scenarios.
2. Environmental Survival (Hardcore Metrics)
Temperature: Mil-Spec connectors endure the thermal shock of moving from polar cold to engine-room heat. M-Series focuses more on the stable or moderately fluctuating temperatures found in factory floor environments.
Corrosion Resistance: For offshore or drilling applications, INGKE’s Mil-Spec line uses Olive Drab Cadmium or Black Zinc Nickel plating, easily surpassing 500–1000 hours of salt spray testing. M-Series typically utilizes Nickel/Chrome plating, offering excellent cost-to-performance for general industrial use.
3. Signal & Power Density
M-Series: Optimized for standardized coding (A-Code for power, D/X-Code for 10Gbps Ethernet). It is the "plug-and-play" backbone of Industry 4.0.
Mil-Spec: Supports ultra-high contact density (up to 128 pins in a single shell). It allows for hybrid layouts combining fiber optics, coaxial cables, and high-power contacts in one interface.
Why Choose INGKE TECHNOLOGY?
At INGKE, we don't just supply parts; we provide engineered reliability.
Customization: We offer tailored pin assignments and specialized overmolding.
Quality Assurance: 100% electrical and signal integrity testing before shipping.
Global Compliance: All products meet RoHS, REACH, and relevant international safety standards.
Choosing INGKE means choosing a "Zero-Failure" commitment for your critical links.
