Technical Analysis of INGKE Integrated RJ45 Transformers (MagJack)
The "Neural Center" of Industrial Connectivity: Technical Analysis of INGKE Integrated RJ45 Transformers (MagJack)
In the ecosystem of high-speed Industrial Ethernet, the Integrated RJ45 Transformer (also known as MagJack or Integrated Connector Module - ICM) serves as the critical bridge between the Physical Layer (PHY chip) and the external transmission medium. INGKE TECHNOLOGY’s integrated solutions are not merely physical interfaces; they represent a breakthrough in both space-saving and signal integrity by embedding complex magnetic components within a standardized connector housing.
I. Core Functionality: Why "Integration" is Essential
Traditional PCB designs require separate RJ45 jacks and discrete magnetic components. INGKE’s integrated approach offers three decisive advantages:

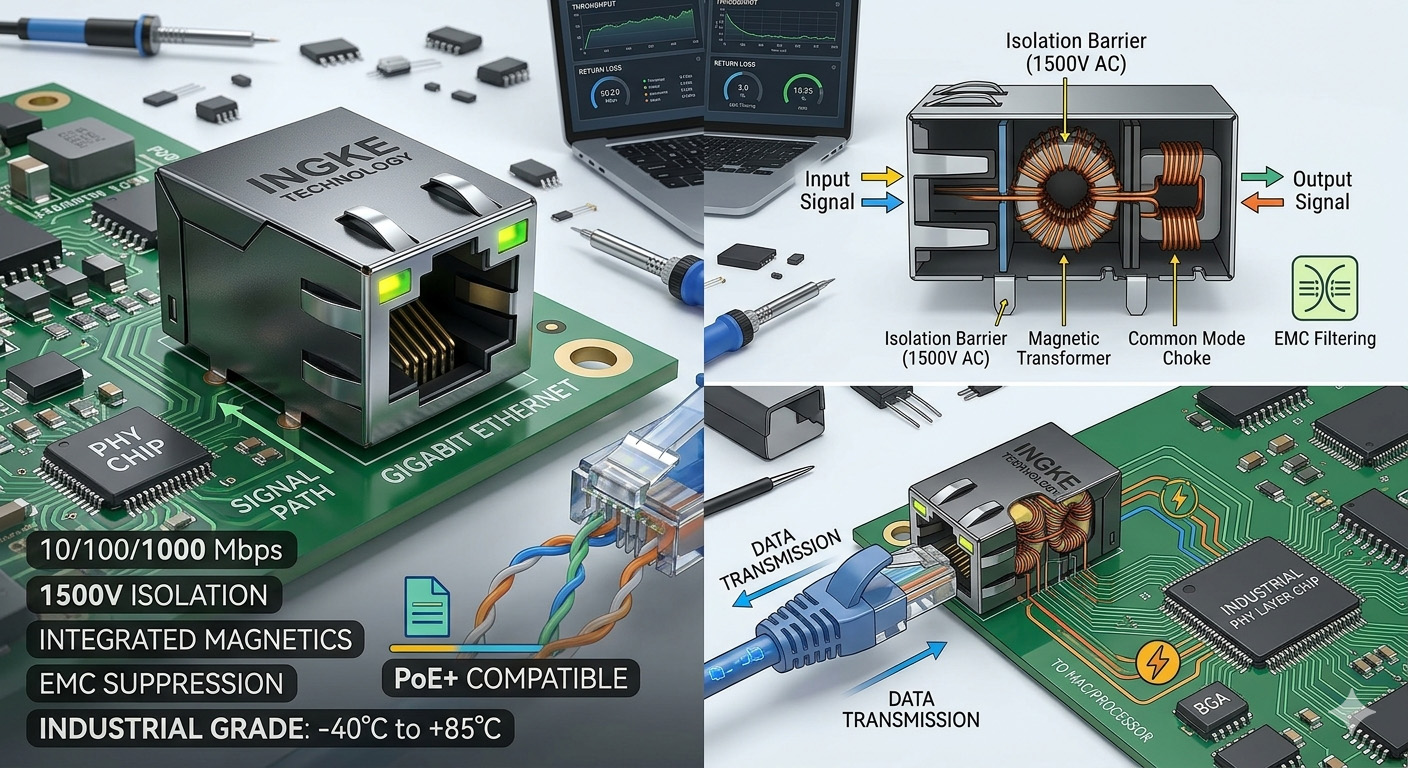

Signal Isolation & Safety: Provides electrical isolation of 1500V AC or higher, effectively shielding sensitive PHY chips from Electrostatic Discharge (ESD), surges, and ground loop currents common in industrial environments.
Superior EMI/RFI Suppression: Features internal Common Mode Chokes and filtering circuits to drastically reduce electromagnetic interference. INGKE’s shielded housings utilize multi-point Panel Ground Tabs to ensure a "clean" data link even in high-noise environments.
Impedance Matching: Precision internal winding ensures differential signal impedance consistency, minimizing Return Loss and supporting longer cable runs without data degradation.
II. INGKE Technical Specifications & Categories
To meet diverse industrial and commercial demands, INGKE offers a comprehensive portfolio:
Transmission Speeds: Spanning from 10/100 Base-T (Fast Ethernet) and 1000 Base-T (Gigabit) to next-generation 2.5G/5G/10G Base-T (Multi-Gigabit) solutions.
Power over Ethernet (PoE) Support: Fully compatible with IEEE 802.3af (PoE), 802.3at (PoE+), and 802.3bt (PoE++). Our transformers are designed to handle up to 1A DC offset current without magnetic saturation.
Physical Configurations:
Single Port (1x1) and Multi-port (1xN / 2xN) stacked designs.
Integrated LEDs: High-efficiency LEDs (Green/Yellow/Orange) for real-time link and activity feedback.
Low Profile & SMT Options: Tailored for ultra-thin industrial PCs and embedded motherboards.
III. Industrial-Grade Durability
Unlike standard commercial-grade products, INGKE’s RJ45 ICMs are engineered for the "Harsh Edge":
Extended Temperature Range: Reliability tested from -40°C to +85°C, ideal for outdoor base stations and fanless IPCs.
Gold Plating Thickness: Standard 30µ" or 50µ" gold plating on contacts ensures minimal contact resistance and prevents oxidation over thousands of mating cycles.
High-Temp Materials: Housings made of LCP or high-temp Nylon to support Lead-Free Reflow Soldering processes.
IV. Key Application Scenarios
Industrial PLCs & HMIs: Ensuring stable Fieldbus data exchange in factory automation.
Security & Surveillance (IP Cameras): Integrating PoE to deliver power and 4K video over a single cable.
Servers & Network Switches: High-density port integration to optimize backplane routing.
Medical Imaging: High-isolation properties to protect patients and expensive diagnostic equipment.
V. Conclusion
INGKE TECHNOLOGY’s Integrated RJ45 Transformers do more than just simplify your PCB layout; they enhance the overall EMC (Electromagnetic Compatibility) and reliability of your system. In an era where "smaller, faster, and tougher" is the standard, our ICM solutions are the preferred choice for engineers aiming for excellence.
