RJ45 Connector with Magnetics: A Comprehensive Guide

In the rapidly evolving world of networking infrastructure, the demand for compact, efficient, and reliable connectivity has never been higher. Whether you are designing equipment for a massive data center or a specialized industrial IoT device, the choice of the right RJ45 connector is critical.

Modern engineering is moving away from discrete components toward integrated solutions. Among these, the RJ45 Connector with Integrated Magnetics (often referred to as a MagJack™ or Magnetic RJ45) has emerged as the industry standard. This guide explores why integrated magnetics are essential and how to choose the best components for your design.

Understanding the Role of Magnetics in Networking

An RJ45 connector is more than just a mechanical housing for copper pins. In Ethernet applications, "magnetics" (transformers and chokes) are required to perform several vital functions:

1. Isolation: They provide electrical isolation between the PHY (Physical Layer) chip and the cable, protecting sensitive electronics from voltage surges or static discharge.

2. Signal Integrity: They help maintain clear communication by filtering out electromagnetic interference (EMI).

3. Impedance Matching: Ensuring the signal travels smoothly between different parts of the network without reflection.

Why Choose Integrated Magnetics?

Traditionally, engineers used a standard RJ45 jack and placed the magnetic components separately on the PCB. However, integrating these components directly into the connector housing offers significant advantages:

• PCB Space Savings: By moving the magnetics into the jack, you free up valuable "real estate" on your circuit board, allowing for more compact product designs.

• Reduced EMI: Integrated magnetics are shielded within the connector's metal housing, which significantly reduces noise and improves overall EMI performance compared to discrete layouts.

• Simplified Design: Using a single pre-tested component simplifies the manufacturing process and reduces the bill of materials (BOM).

Key Specifications to Consider

When selecting an RJ45 with integrated magnetics, keep these factors in mind:

• Speed: Ensure the connector supports your required data rate, whether it’s 10/100 Base-T, 1G, 2.5G, 5G, or even 10G Base-T.

• PoE Compatibility: If your device requires Power over Ethernet (PoE, PoE+, or PoE++), the magnetics must be designed to handle the DC current without saturating the transformer cores.

• Tab Orientation: Depending on your mechanical layout, you may need "Tab-UP" or "Tab-DOWN" configurations.

• LED Integration: Most modern connectors include built-in LEDs to indicate link status and activity.

Elevate Your Design with INGKE Technology

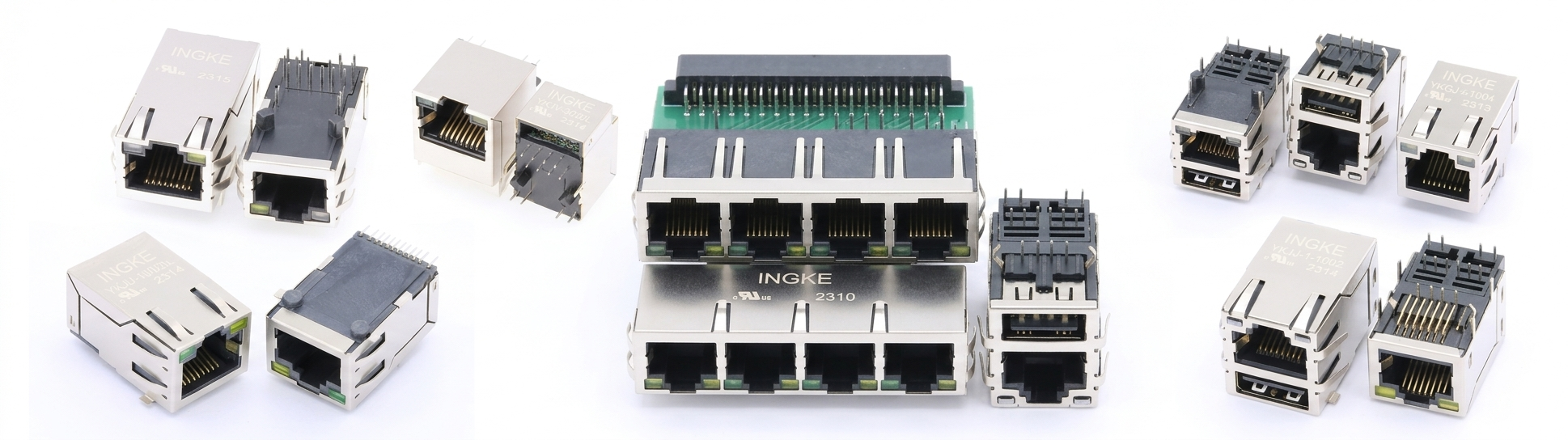

When it comes to high-performance networking components, INGKE Technology stands at the forefront of innovation and reliability. As a leading manufacturer specialized in RJ45 connectors with integrated magnetics, INGKE offers a direct equivalent to major global brands but with enhanced flexibility and competitive lead times.

Why Choose INGKE RJ45 Connectors?

1. Massive Compatibility: INGKE provides high-quality 100% cross-references for industry leaders like Pulse, TE Connectivity, Molex, and Bourns.

2. Advanced Shielding: Our connectors feature superior EMI suppression technology, ensuring your device meets stringent regulatory standards (like FCC or CE) with ease.

3. Industrial Grade Durability: Designed to operate in harsh environments, INGKE’s RJ45 series supports extended temperature ranges and high-reliability cycles.

4. Global Certifications: With ISO9001 and UL certifications, INGKE ensures that every piece leaving the factory meets the highest global quality benchmarks.

Conclusion

The transition from discrete magnetics to integrated RJ45 solutions is a logical step for any engineer looking to optimize performance and reduce footprint. By understanding the technical requirements of your specific application—from speed to PoE needs—you can select a component that ensures long-term stability.

For those seeking world-class quality and exceptional value, INGKE Technology is your ideal partner. Explore our extensive catalog of Integrated Magnetic RJ45 connectors today and give your network infrastructure the reliability it deserves.
